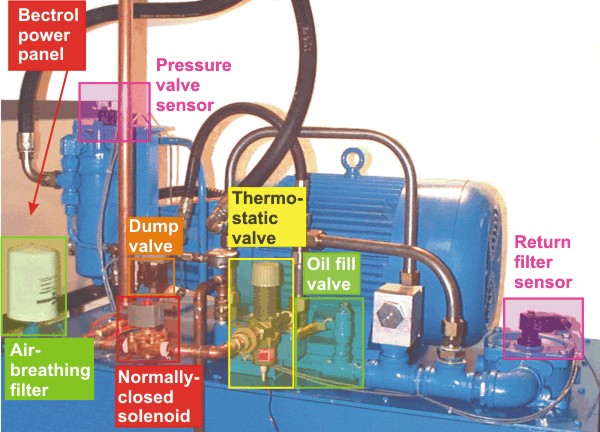

Note: this schematic diagram does not include the normally-closed solenoid, which is in series with thermostatic valve (component #36).
The operator control panel (normally in REKLAB) is connected to the Bectrol power panel (in the basement) via a multi-wire cable. For testing purposes, the operator control panel can be relocated to the basement and connected to the power panel using a shorter cable.
