Build a Simulink Block Diagram

Simulink Block Diagram

The first step in using the xPC system is to develop the code through the use of Simulink and the xPC Library of I/O blocks. The Simulink Block Library on the xPC Host machine (Spindle) includes the xPC library which has special blocks to interface with a variety of I/O boards.

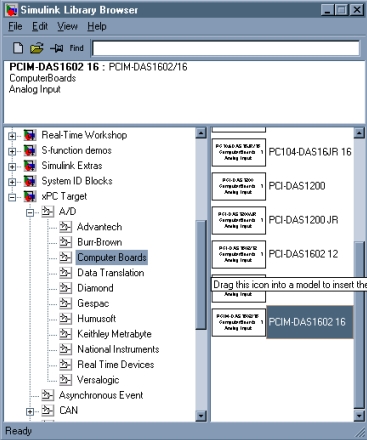

The screen shot left shows the library open to the ComputerBoards PCIM-DAS1602/16, which is the A/D board on the target (Renshaw). Add these blocks by dragging one into the Simulink model.

Using a combination of the xPC blocks and other Simulink blocks, we can come up with a simple proportional position controller.

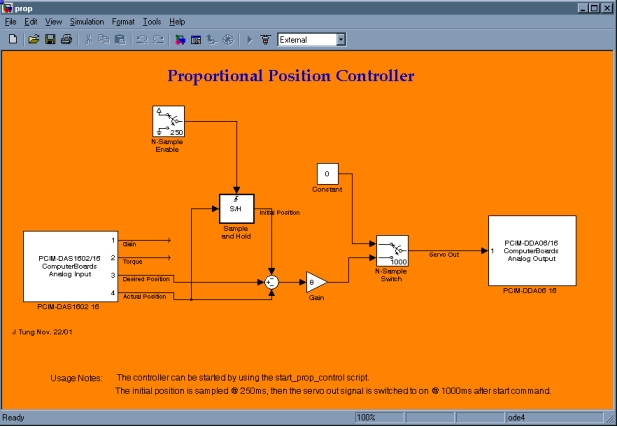

The completed block diagram, shown below, performs the control law:

8*(Desired Position - Actual Position - Initial Position)

The Sum, Gain and Constant blocks are standard Simulink blocks. From the DSP Blockset, a Sample & Hold and 2 delayed Switches are used to store the initial position.

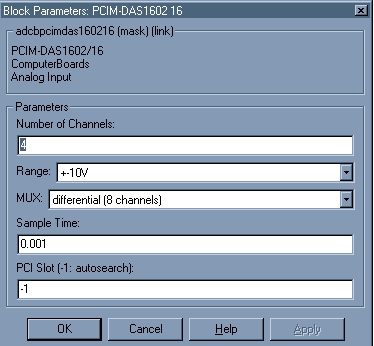

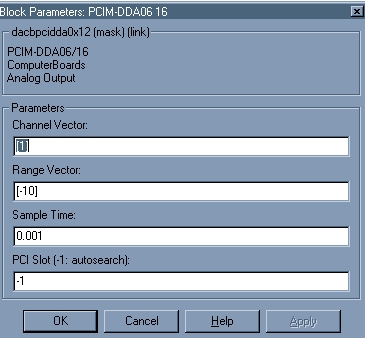

The I/O block parameters are shown in the figures below. TIP: Pay particular attention to the sample time and the range values. The sample time should match the desired sampling frequency. In this case, it is set to 1 kHz. The PCIM-DAS 1602/16 has been set up to run 8 differential channels, whereas the block default sets it to 16 single-ended channels.

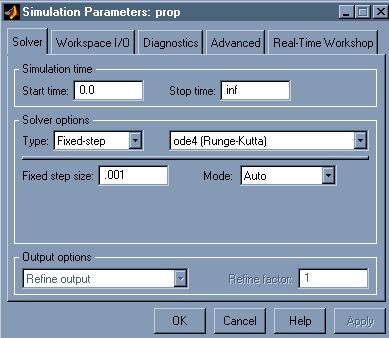

The next step is to set the Simulation Parameters, which can be accessed through the Simulation menu or Ctrl-E.

  • The stop time can be pre-set or can run infinitely.
  • The solver should use a fixed-step size (the Real-Time Workshop will not compile a variable-step simulation.)
  • The step size should be the same as the sample times entered into the block parameters.



Now, you can build and load code to Renshaw.
