Panic button

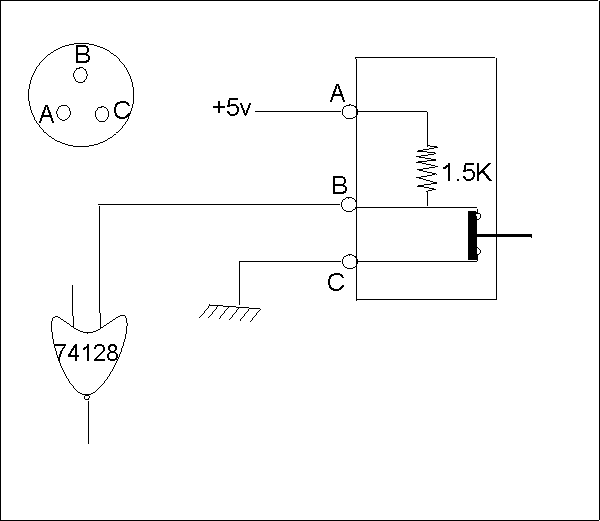

The panic button is a normally-closed switch. When the panic button is pressed, a 5 Volt signal is generated at connector B. A 0 volt signal is present otherwise. The output of B enters the distribution panel.





Components:
