Input
module
This

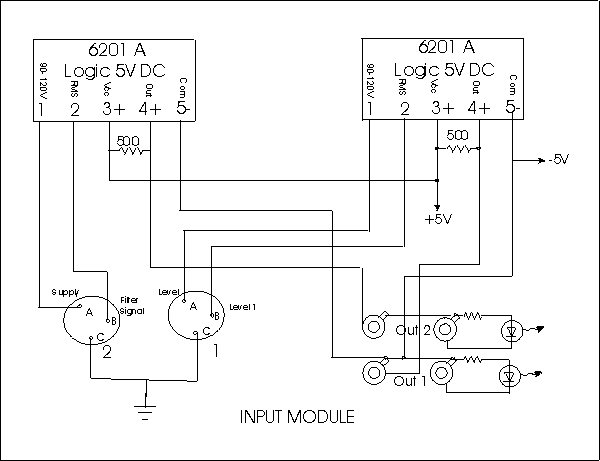

module is used to convert a 0 or 120Volt AC signal to a 0 or +5 volt DC signal
to be used in the logic
module. The hydraulic fluid level AC signal and filter AC signals (from
the distribution
panel) enter the input module via cannon receptacles. In this module,
a Crydom 6201A input/output module is used to convert these signals to 0 or
+5 volts. In our setup only the level signal is used.
Components:
